A Full Information to Designing an ADA Toilet Structure

Planning a industrial restroom renovation or a brand new construct is a big endeavor. Getting the ADA toilet format proper from the beginning is non-negotiable for any public area in america. It ensures you create an area that’s secure, accessible, and welcoming for everybody who makes use of it and that your design meets each ADA compliance and relevant constructing codes.

The ADA tips can appear complicated at first. There are particular technical necessities for all the pieces from turning area to faucet controls, peak and coat hooks placement. This complexity can really feel overwhelming, however breaking it down makes the method manageable and clear for any designer.

This information will stroll you thru the important requirements, dimensions, and design elements. You’ll learn to create a compliant ADA toilet plan that’s each practical and aesthetically pleasing, avoiding frequent pitfalls alongside the best way whereas making certain there may be sufficient area for customers with mobility points or visible impairments.

What are the ADA-Compliant Requirements?

The People with Disabilities Act (ADA) is a civil rights regulation that prohibits discrimination towards people with disabilities. For designers, the important thing doc is the ‘2010 ADA Requirements for Accessible Design.’ This doc outlines the minimal necessities for altering or developing amenities to be readily accessible to and usable by people with disabilities.

These requirements apply primarily to public lodging and industrial amenities, making certain that folks with disabilities have equal entry to items, companies, and amenities. Compliance helps you keep away from authorized penalties, align with native constructing codes, and promote inclusivity. In complicated tasks, collaborating with an accessibility skilled or a Licensed Entry Specialist can assist you interpret overlaps between ADA and state or native guidelines, particularly for specialty fixtures like an accessible bathroom, bathe seat, or vertical seize bar.

An accessible design additionally enhances your model’s status by demonstrating a dedication to inclusive security options and accessible options that serve numerous customers: from wheelchair riders to older adults, mother and father with strollers, and relations helping family members.

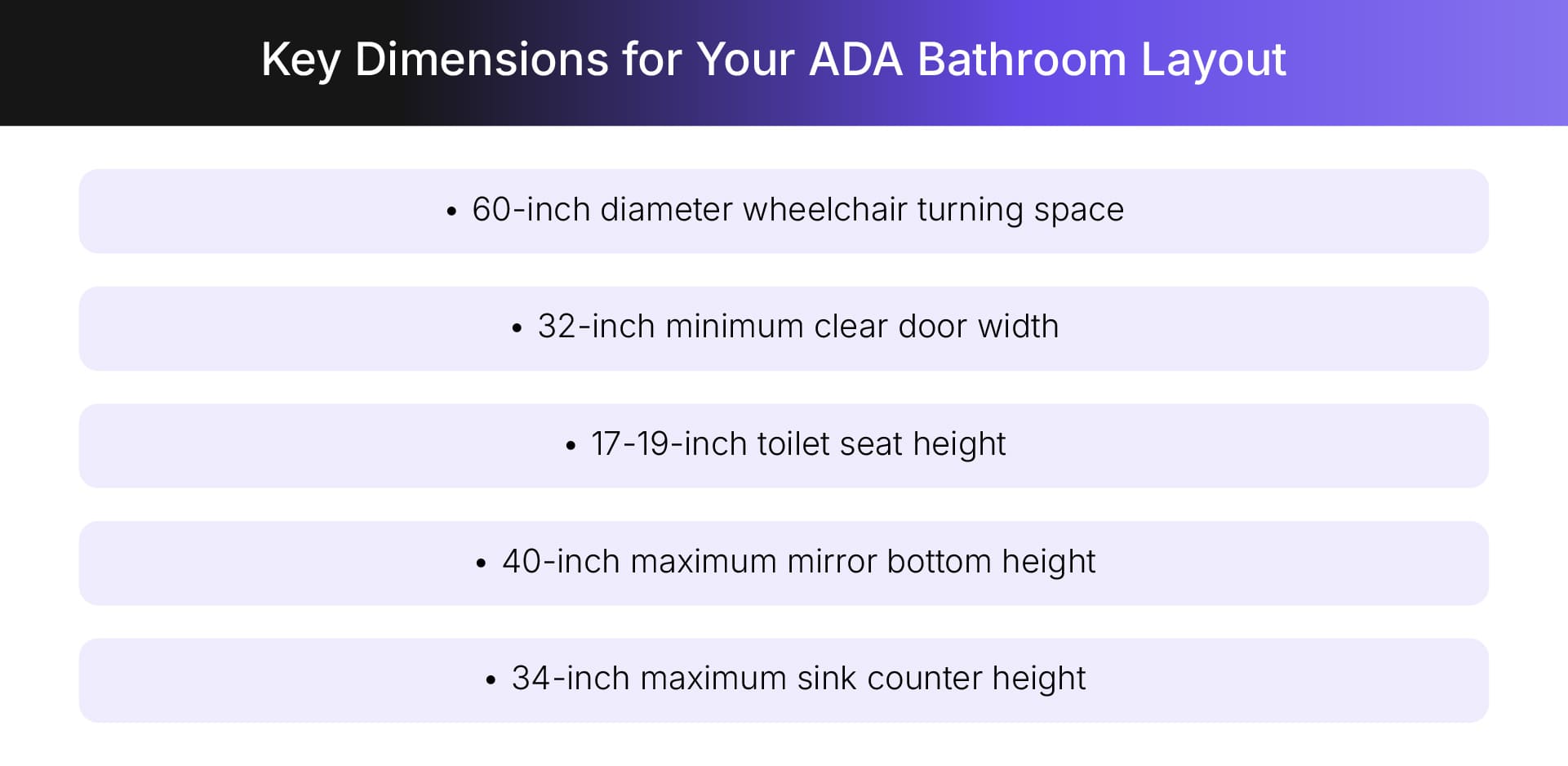

What are the Dimensions of an ADA-Compliant Toilet?

Getting the ADA toilet ground plan dimensions appropriate is essential for compliance. These measurements make sure that people with mobility aids, significantly wheelchairs, can navigate the area comfortably and safely. Each factor should be positioned exactly to fulfill these necessities.

At a minimal, a single-user ADA restroom must accommodate a 60-inch (1525 mm) diameter turning circle for a wheelchair. You will need to additionally account for clear ground area at every fixture and guarantee door swings don’t hinder motion. For multi-stall restrooms, at the least one stall should be absolutely compliant.

For an in-depth have a look at creating lovely and practical toilet design concepts, try this video. It covers all the pieces from format planning to materials choice.

Components to Think about When Creating an ADA-Compliant Toilet Flooring Plan

Making a profitable ADA accessible toilet format requires you to contemplate how each factor interacts to create a cohesive and practical area for all customers. Listed below are the important thing elements it’s essential to tackle in your design.

The 60-Inch Turning Circle

This is without doubt one of the most basic necessities for an ADA toilet format.

• It requires a transparent area of at the least 60 inches (1525 mm) in diameter.
• This area permits an individual utilizing a wheelchair to make a 180-degree flip.
• Alternatively, a T-shaped area is permitted inside a 60-inch sq..
• No fixtures or furnishings can overlap with this important maneuvering space.

Clear Flooring Area for Fixtures

Every fixture within the toilet should have its personal devoted clear ground area.

• This area is often a minimal of 30 inches by 48 inches.
• It should be positioned for a ahead or parallel method to the fixture.
• This area can not overlap with the turning circle or door swing space.
• It ensures a wheelchair person can method and use every amenity simply.

Accessible Routes and Doorways

The trail into and thru the lavatory should be fully unobstructed.

• The doorway should have a minimal clear width of 32 inches when open.
• Door {hardware}, like handles and locks, should be operable with one hand.
• The door can not swing into the clear ground area of any fixture.
• An outward-swinging door is usually the most effective resolution for smaller bogs.

Bathroom

Bathroom set up in an ADA-approved toilet format should meet particular necessities:

• The centerline of the bathroom should be 16 and 18 inches from the facet wall.
• Clear ground area of 60 inches minimal should be supplied round the bathroom.
• The peak of the bathroom seat should be between 17 and 19 inches from the ground.
• Seize bars should be put in on the rear wall and nearest facet wall

Bathroom

Sinks and vanities should be designed to permit for simple entry from a seated place.

• The sink should not be mounted greater than 34 inches from the ground.
• There should be knee clearance of at the least 27 inches excessive beneath.
• Taps ought to be lever-operated or computerized, not requiring tight greedy.
• Pipes beneath the sink should be insulated to stop contact burns.

Mirrors, Dispensers, and Hand Dryers

Equipment should be mounted at heights which can be accessible to everybody.

• A mirror should be mounted with the underside edge no greater than 40 inches.
• Dispensers and hand dryers ought to be mounted inside a 15-48 inch attain vary.
• These equipment mustn’t mission greater than 4 inches into the trail.
• Hand dryers should be situated the place they don’t hinder any clear ground area.

7 Finest and Purposeful ADA Flooring Plan Examples

Exploring totally different layouts can assist you discover the proper resolution to your area. Listed below are seven practical examples of an ADA toilet floorplan to encourage your subsequent mission.

Structure 1: The Multi-Stall Restroom

This format is frequent in public venues like airports, stadiums, and purchasing facilities. It options a number of stalls with at the least one absolutely accessible stall that’s wider and deeper than the others, typically situated on the finish of the row for simple entry.

• Contains one ambulatory accessible stall and one wheelchair accessible stall.
• Options an outward-swinging door on the accessible stall to maximise area.
• Accessible sinks and dryers are situated alongside an unobstructed path.
• Gives a transparent and extensive pathway from the doorway to all amenities.

A practical industrial handicap toilet format for high-traffic areas

Picture Credit score: Pinterest

This single ADA toilet format is designed to suit into the smallest doable area whereas nonetheless assembly all compliance requirements. It’s good for small places of work, cafes, or boutiques the place sq. footage is at a premium and each inch counts.

• Typically makes use of a T-shaped turning area as a substitute of the complete 60-inch circle.
• The door swings outward to keep away from obstructing the inside clear ground area.
• Fixtures are fastidiously positioned to permit for required clearances round them.
• An environment friendly design for a compact ADA-approved toilet format.

To make planning such a compact area simpler, you need to use Foyr Neo’s intuitive toilet planner software. The drag-and-drop performance enables you to place fixtures and immediately see for those who meet the clearance necessities.

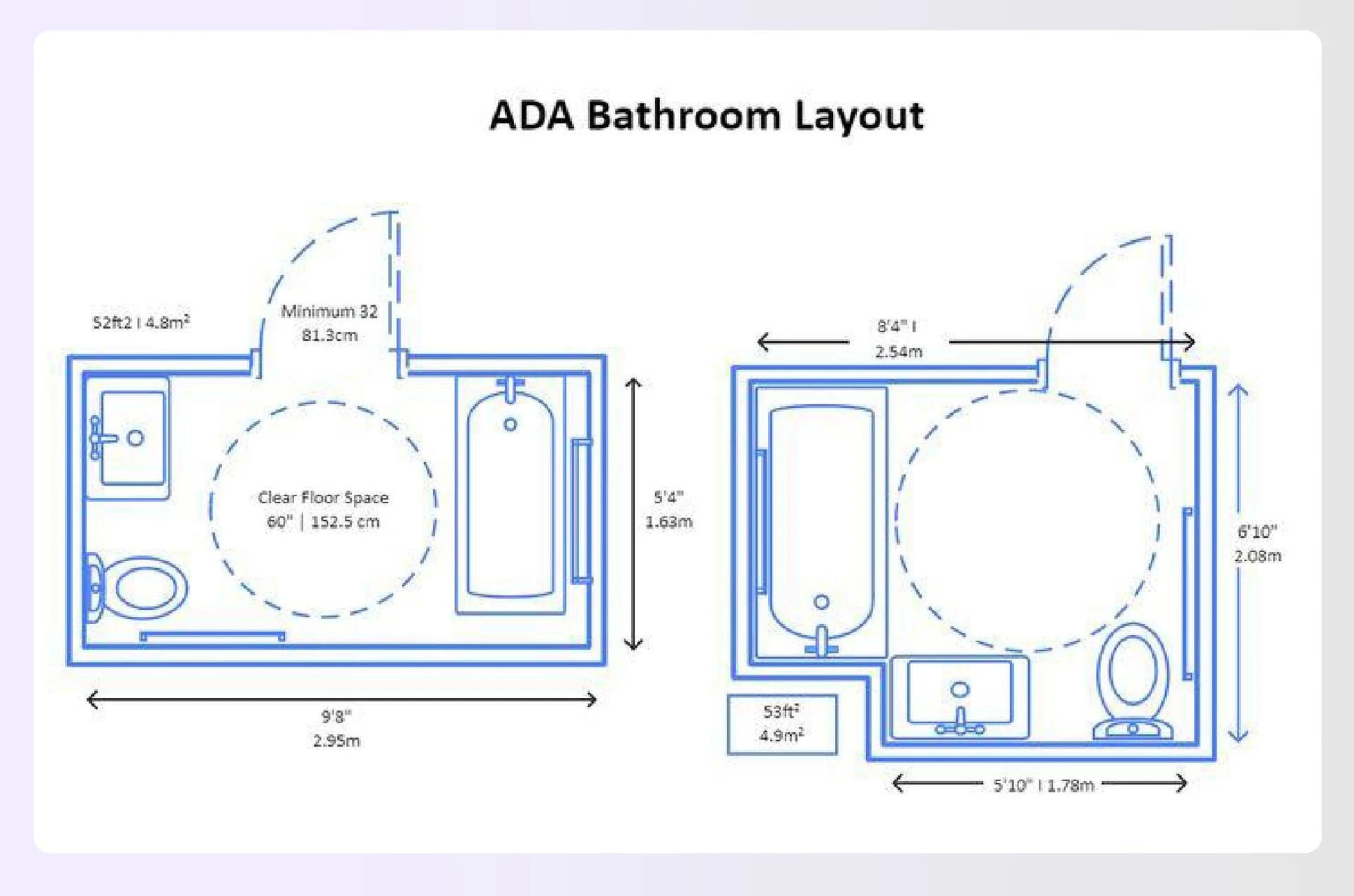

This small ADA bathtub format maximizes performance in restricted area

Picture Credit score: Pinterest

Structure 3: The Full Toilet with Roll-In Bathe

This format is frequent in resorts, hospitals, and residential properties. The important thing function is a barrier-free, roll-in bathe that enables a wheelchair person to maneuver instantly from the lavatory ground into the bathe area with out navigating a curb.

• Options a big, curbless bathe space with a built-in seat and seize bars.
• The bathe controls and handheld showerhead are positioned inside straightforward attain.
• Gives the required 60-inch turning circle outdoors of the bathe space.
• A wonderful instance of an ADA residential toilet format.

Full ADA toilet format residential with accessible bathe

Picture Credit score: Pinterest

Structure 4: The ‘In-Swinging Door’ Answer

Whereas outward-swinging doorways are extra frequent, an inward-swinging door might be compliant if it doesn’t intrude with any required clear ground area. This format requires a bigger total toilet footprint to accommodate the door’s arc.

• The door should not swing into the bathroom’s clear ground area or turning circle.
• This design is usually utilized in bigger single-user restrooms.
• Fixtures are positioned on partitions away from the door swing path.

If you wish to see how shortly you possibly can deliver a ground plan to life, this video is a must-watch. It demonstrates take a 2D plan and switch it into a totally furnished 3D mannequin.

Structure 5: The Alcove-Type Wheelchair Stall

This design is a variation of the multi-stall restroom. It’s  strategic industrial handicap toilet format for busy environments. The accessible stall is positioned inside an alcove, which may present extra privateness and assist set up the circulate of visitors inside a bigger restroom.

• The alcove creates a devoted and personal area for the accessible stall.
• This format retains the primary visitors path clear and unobstructed.
• The stall itself meets all necessities for dimension, seize bars, and bathroom placement.

You’ll be able to design and visualize one of these format in minutes utilizing Foyr Neo. The software program’s one-click 2D to 3D conversion helps you and your shoppers immediately visualize the area and guarantee it meets all practical wants.

This ADA-approved toilet format makes use of an alcove for privateness

Picture Credit score: Pinterest

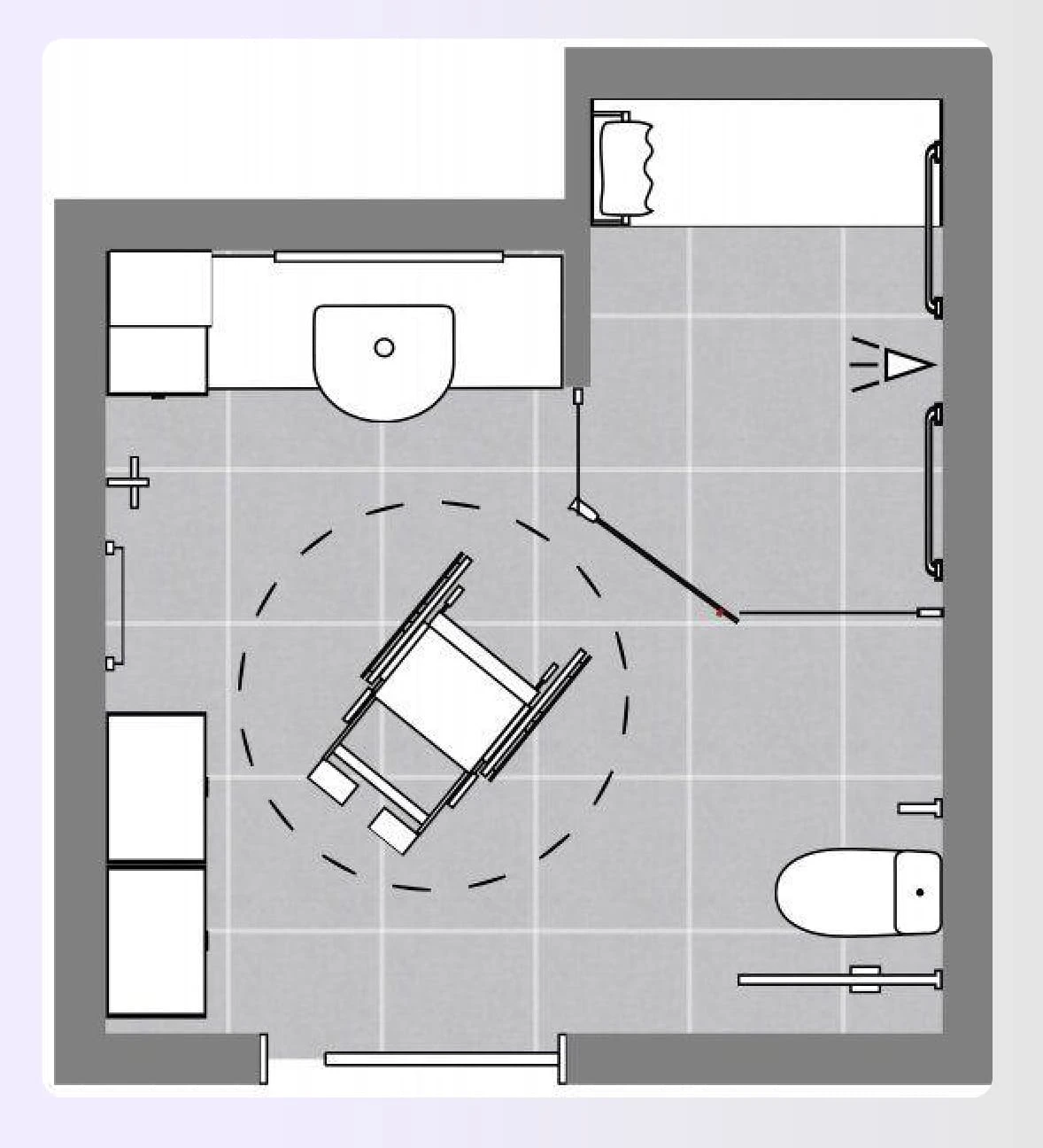

Structure 6: The Companion Care Restroom

Also referred to as a household restroom, this massive, single-user toilet is designed for use by an individual with a incapacity and a companion. An inclusive ADA toilet plan for public areas like parks and malls, and infrequently contains further options like an grownup altering desk.

• Gives ample area for 2 folks and a wheelchair to maneuver comfortably.
• Typically contains each a rest room and a urinal to accommodate totally different wants.
• Could function a wall-mounted grownup altering station for added comfort.

Supportive ADA toilet floorplan for customers requiring help

Picture Credit score: Pinterest

Structure 7: The Nook-Bathroom Structure

On this format, the bathroom is positioned within the nook of the room. This may be an environment friendly method to set up the area, significantly in a sq. or almost sq. room, as it might open up the middle of the room.

• Inserting the bathroom within the nook maximizes the obtainable turning area.
• This format requires seize bars on two adjoining partitions, forming an L-shape.
• The sink and different equipment are positioned on the other partitions.
• An awesome possibility for an ADA toilet format residential design.

Utilizing a software like Foyr Neo’s Ruler Software can assist you guarantee each factor in your ADA bathtub format is completely positioned. You’ll be able to create exact measurements between objects and confirm that clearances meet all code necessities.

A wise ADA toilet format residential plan utilizing a nook bathroom

Picture Credit score: Pinterest

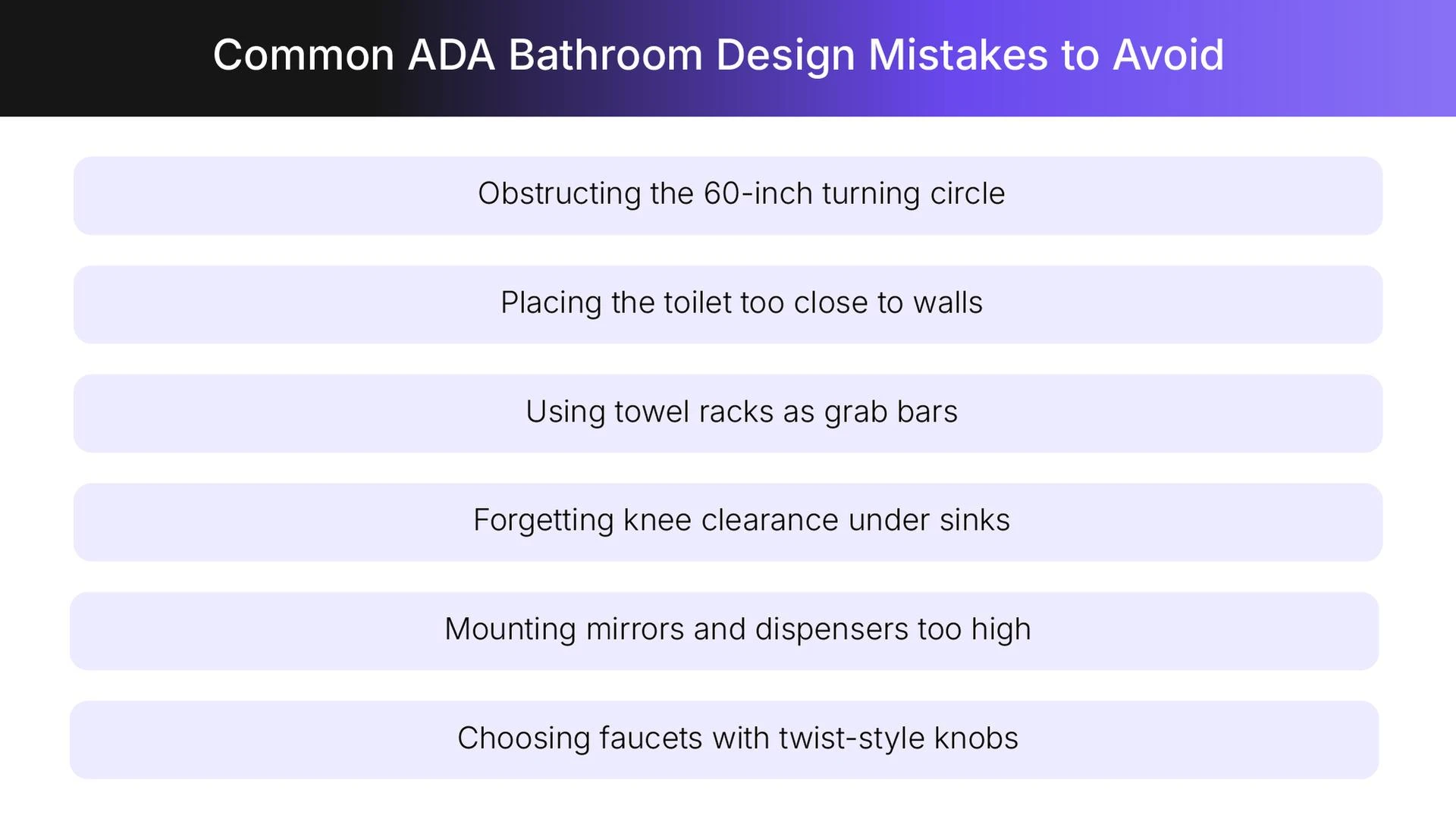

Errors to Keep away from Whereas Designing an ADA Toilet Structure

Even with the most effective intentions, it’s straightforward to make errors. Listed below are some frequent toilet design errors to keep away from.

Misjudging the Turning Area

The 60-inch turning circle is non-negotiable and should be fully clear. A standard error is permitting a fixture, trash can, and even the door swing to encroach on this area. At all times double-check your measurements to make sure this space stays unobstructed.

Incorrect Bathroom Placement

The bathroom’s place is strictly outlined. It should be a selected distance from the facet wall and the again wall to permit for correct seize bar set up and switch area. Inserting it too shut or too removed from a wall will render the area non-compliant.

Botching the Seize Bars

Seize bars should be the right size, diameter, and peak, and so they should be put in to resist important drive. Utilizing ornamental towel bars as a substitute of correct seize bars is a harmful and non-compliant mistake that compromises person security.

Overlooking Sink and Mirror Accessibility

The area beneath the sink should be clear for knee entry, and the mirror should be low sufficient for a seated particular person to make use of. Forgetting to insulate the pipes beneath the sink is a frequent oversight that may result in burns.

The Door Swing Debacle

The route of the door swing is essential. An inward-swinging door in a small toilet can lure an individual inside in the event that they fall or want help. It may possibly additionally block entry to fixtures, making the lavatory unusable for somebody in a wheelchair.

Forgetting Attain Ranges for Equipment

Cleaning soap dispensers, paper towel dispensers, and hand dryers should be positioned inside accessible attain ranges for an individual in a wheelchair. Mounting these things too excessive or too far again on a counter makes them troublesome or unattainable to make use of.

Selecting Non-Compliant Fixtures

Not all bogs, sinks, and taps are ADA-compliant. For instance, an ordinary round-front bathroom is often too low, and taps with twist-style knobs will not be compliant. At all times specify fixtures which can be licensed to fulfill ADA requirements in your ADA accessible toilet format.

Create Your ADA Toilet Flooring Plan with Foyr

Designing a compliant ADA toilet format requires precision, creativity, and the fitting instruments. Foyr is an all-in-one inside design software program that simplifies the complete course of, from preliminary ground plan to closing render. It empowers you to create correct and exquisite designs shortly.

With Foyr Neo, you possibly can cease juggling a number of packages and plugins. It gives all the pieces you want in a single intuitive, cloud-based platform, serving to you’re employed sooner and extra effectively. For individuals who want skilled help, Foyr’s inside design companies provide knowledgeable contact. Our crew can create a totally compliant and visually interesting ADA toilet format for you, managing each element from idea to completion, beginning at $99.

• Use intuitive drag-and-drop instruments to create exact 2D ground plans in minutes.
• Entry a library of over 60,000 render-ready 3D fashions of fixtures and furnishings.
• Convert your 2D plans to 3D fashions with a single click on for immediate visualization.
• Use exact measurement instruments to make sure each factor meets strict ADA requirements.
• Generate beautiful, photorealistic 12K renders to current your designs to shoppers.

Able to optimize your design workflow? Join a 14-day free trial as we speak and begin designing.

Continuously Requested Questions (FAQs)

How a lot does it price to make a toilet ADA compliant?

The price can differ considerably based mostly on the mission’s scope. A easy rework may cost a little just a few thousand {dollars} for brand spanking new fixtures and seize bars. A full renovation requiring structural modifications might price $10,000 or extra. It will depend on present situations and the extent of finishes you select.

What’s the smallest ADA full toilet format?

The smallest doable format for a full ADA toilet with a rest room, sink, and roll-in bathe is often round 75 to 85 sq. toes. This requires cautious placement of fixtures to make sure all clearance and turning area necessities are met with none overlap in a compact footprint.

The place are ADA bathe bars put in?

In a roll-in bathe, seize bars are required on all three partitions. In a transfer-type bathe stall, they’re required on the partitions reverse the seat and subsequent to the seat. They should be put in at a peak of 33 to 36 inches above the bathe ground.

Is a mirror required in an ADA toilet?

Sure, if a mirror is supplied, at the least one should be compliant. The underside fringe of the reflecting floor should be no greater than 40 inches from the ground. Alternatively, a full-length mirror might be supplied. This ensures it’s usable for each standing people and people in wheelchairs.

What are the ADA necessities for bathe drains?

In a roll-in or curbless bathe, the drain is essential for managing water. The bathe ground slope mustn’t exceed 1:48 to make sure correct drainage with out making a steep incline. Trench drains situated on the entrance or towards a wall are in style and efficient options for barrier-free designs.
